Home > Products > ESS Power Conversion > Solar-storage Charging Power Supply > Non-Isolated Bidirectional DC-DC Converter Series
| Flexible Configuration | Provides bidirectional buck/boost conversion over a wide 150–1000 Vdc operating range. It supports lithium-ion batteries, sodium-ion batteries, supercapacitors, PV arrays and other input types, enabling flexible connection and configuration for different systems. |
|
High Efficiency × High Power Density |
The all-SiC design delivers a peak conversion efficiency of 99.2% or higher. The control unit, power relays and fuses are highly integrated, achieving a power density of 13.8 kW/L while combining excellent energy efficiency with high space utilization. |
| Versatile Functions | Supports constant-voltage, constant-current and constant-power operating modes, with black-start capability and an integrated MPPT algorithm. Up to 40 units can operate in parallel, allowing system capacity to be expanded as required for diverse applications. |
| Safe and Reliable | Integrates multiple electrical protection functions, including overcurrent, overvoltage, overtemperature and overload protection. Bidirectional short-circuit protection enables microsecond-level fault-current interruption, with short-circuit let-through energy I²t < 1,600 A²s. Certified to IEC 62109, IEC 62477, UL 1741 and other recognized standards, ensuring long-term stable system operation. |

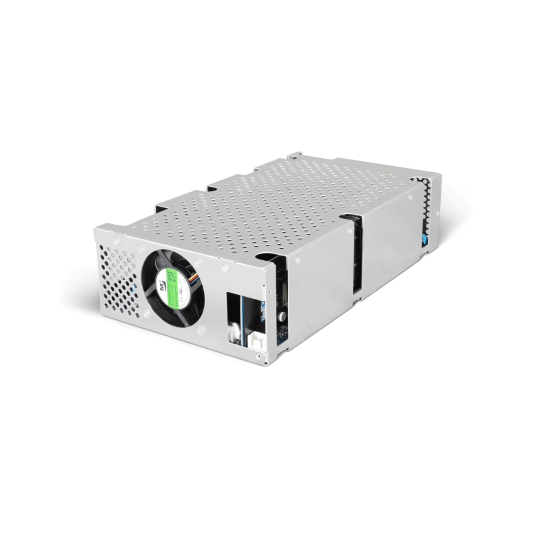

1.5kW PCS energy storage inverter integrates a 400W PV converter.

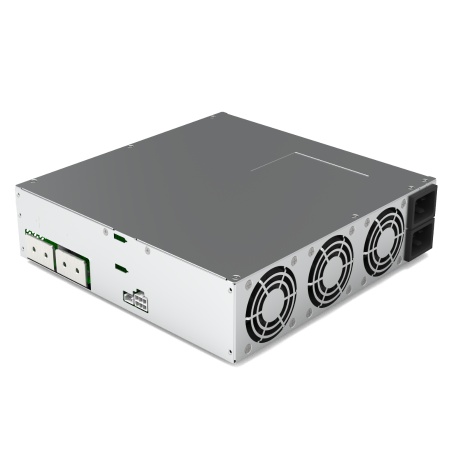

Air-Cooled Single-Phase Dual-Input Computing Server Power Supply

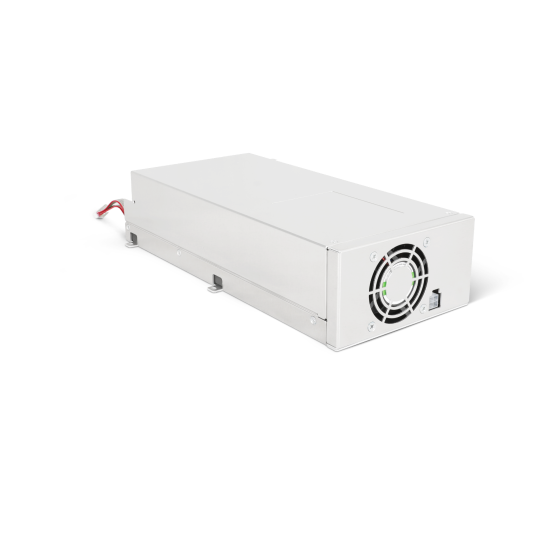

Air-Cooled Single-Phase Input Computing Server Power Supply
200kW MPPT Comet 200S
