Flexible Configuration Multi-Source Integration |
Integrates five input/output ports for the grid, PV, energy storage, diesel generation, and loads. Supports independent connection of two battery clusters, with up to 130 kW charge/discharge power per cluster and a 150–1000 V operating range. Up to 24 PV string inputs are supported, with an MPPT voltage range of 150–1000 V, enabling flexible integration of multiple energy sources. |
|
Outstanding Performance Stable Power Supply |
On-grid/off-grid transfer time is less than 20 ms for seamless power switching. In off-grid mode, the system supports 100% three-phase unbalanced loads and accommodates a wide range of load types. High-quality output power, current THD ≤ 3%, and voltage accuracy of up to ±1% help ensure stable power supply to connected loads. |
|
Comprehensive Functions Intelligent Dispatch |
The built-in Energy Management System (EMS) supports coordinated energy flow and optimized dispatch across multiple ports. It provides automatic SOC balancing for multiple battery clusters and supports black start. Even when the grid is unavailable and the batteries are depleted, the system can be started from PV power, making it suitable for diverse power-supply scenarios. |
|
Safe & Reliable Industrial-Grade Design |
Equipped with a dedicated 315 A battery circuit breaker, insulation-resistance monitoring, and DC leakage-current detection. Multiple protection mechanisms include AC short-circuit, over-frequency, and module overtemperature protection. With an IP54 rating, a wide operating temperature range of −20 °C to 60 °C, and support for operation at altitudes up to 4,000 m, the system meets demanding industrial application requirements. |

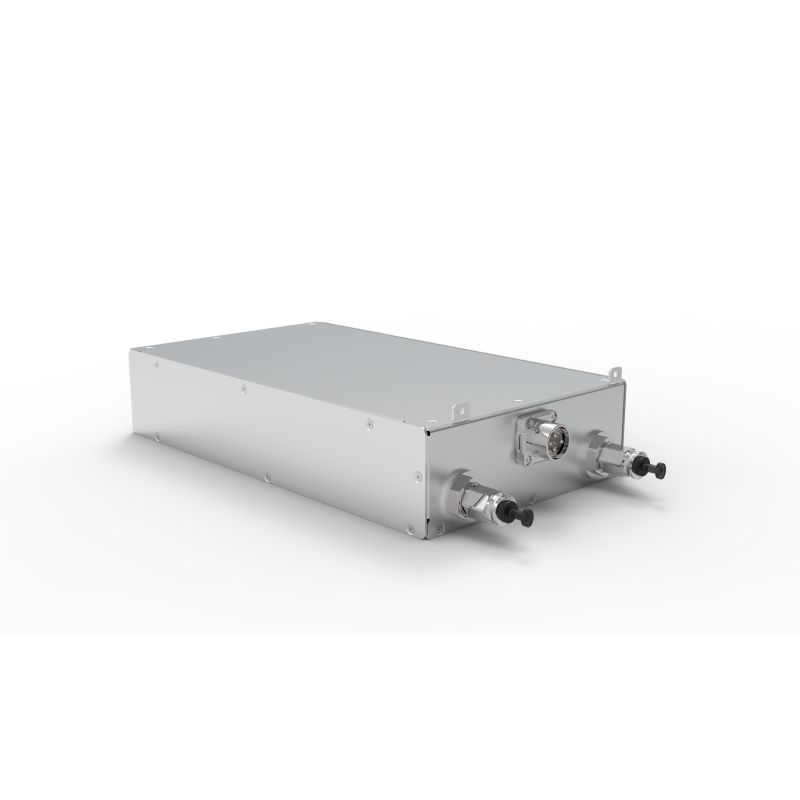

Cold-Plate Liquid-Cooled Three-Phase Input Computing Server Power Supply
